Gantry Type Waterjet Cutting Machine

Contact Us

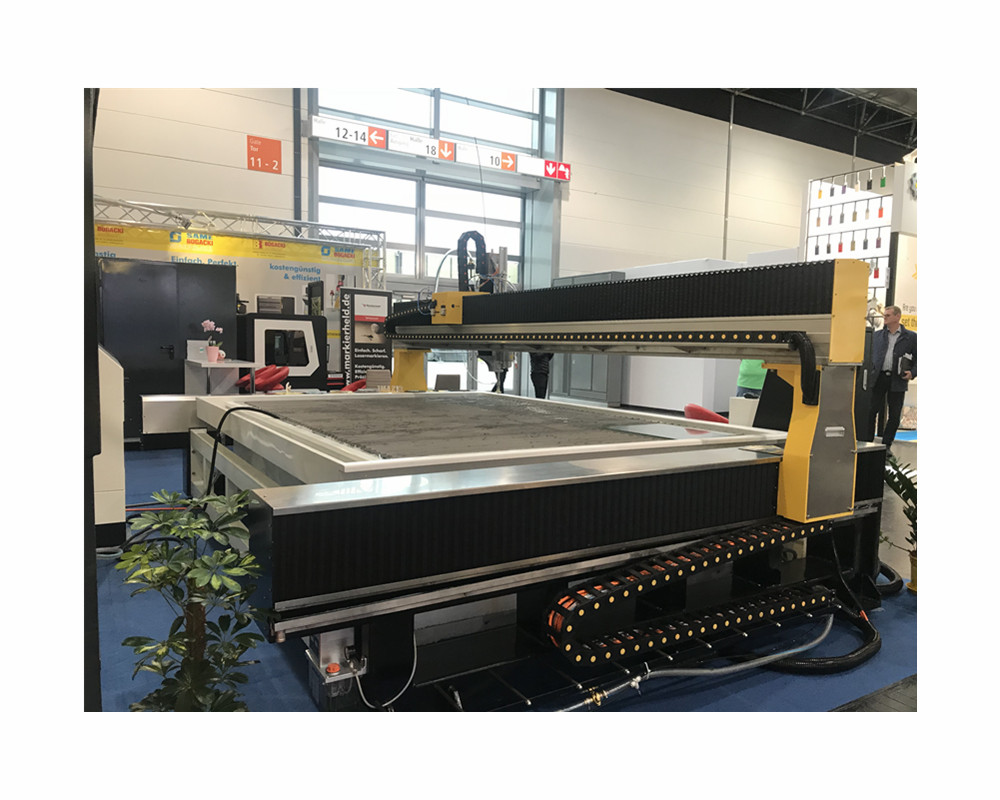

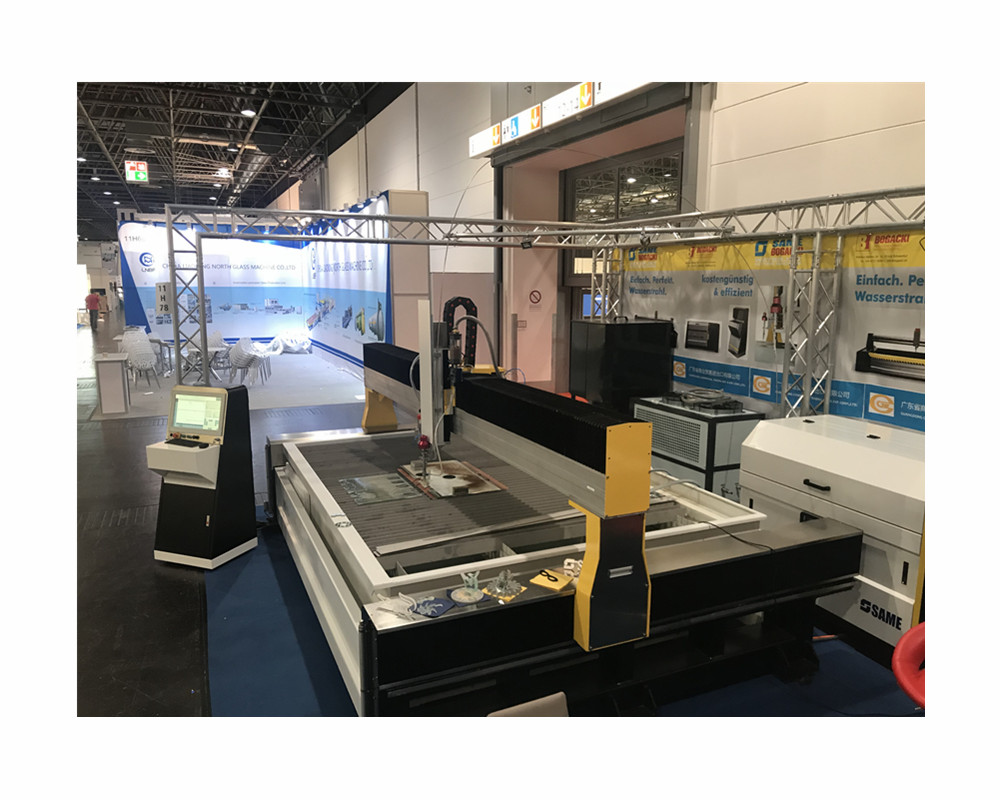

The gantry-type cutting table consists of the transmission part with the X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, a long-running distance of X and Y axis, suitable for processing a variety of complex big size parts.

Categoría:

Features:

The gantry type cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis, suitable for processing a variety of complex big size parts.

Product information:

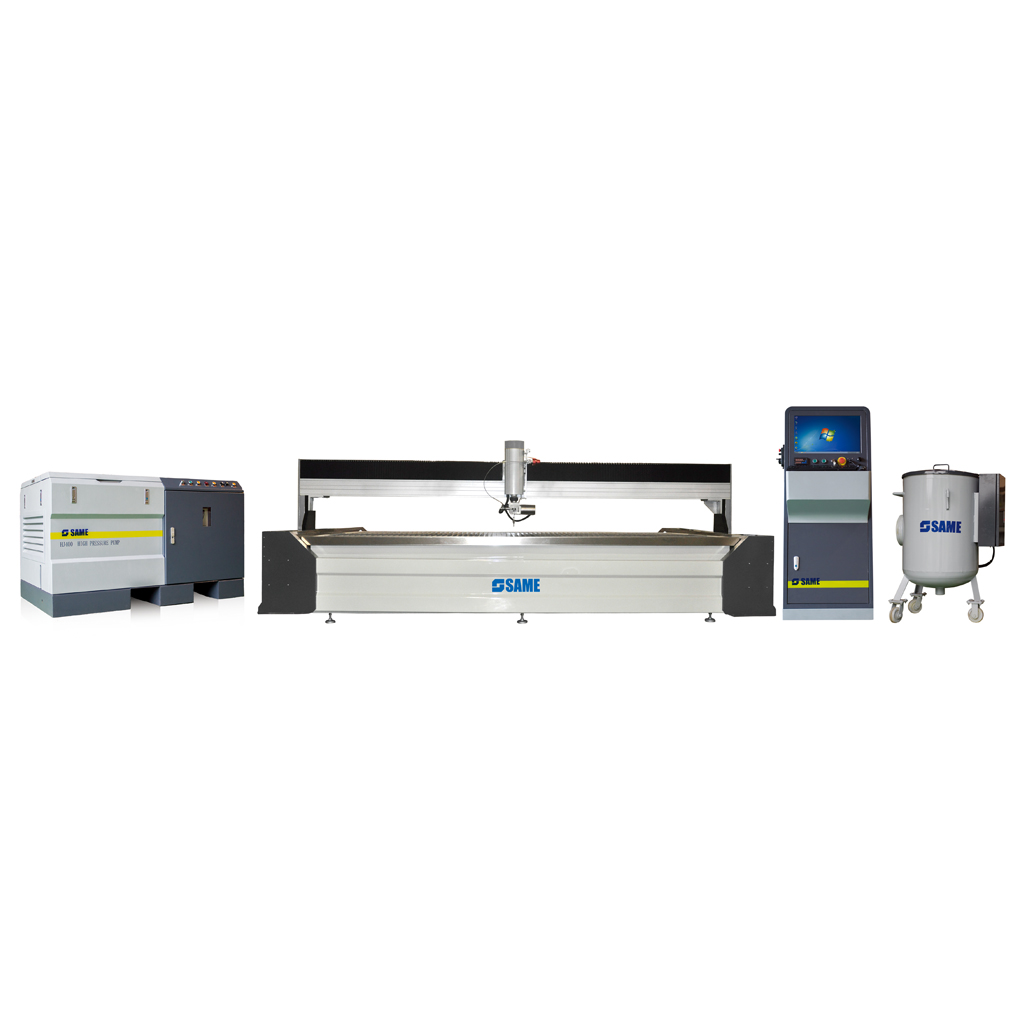

SAME® gantry type waterjet cutting machine is available in many sizes(2500mm x 1500mm, 3000mm x 2000mm, 4000mm x 2000mm, 6000mm x 3000mm, etc. Customized service is available.)

● Travel of Z axis: 150mm

● Servo system: YASKAWA, JAPAN

● Cutting accuracy: ±0.1mm

● Control accuracy: ±0.01mm

● Re-positioning accuracy: ±0.025mm/m

● Max. moving speed: 6000mm/min

Waterjet cutting machine is popular in metal cutting industry, glass cutting industry, stone cutting industry, fiber cutting industry.
