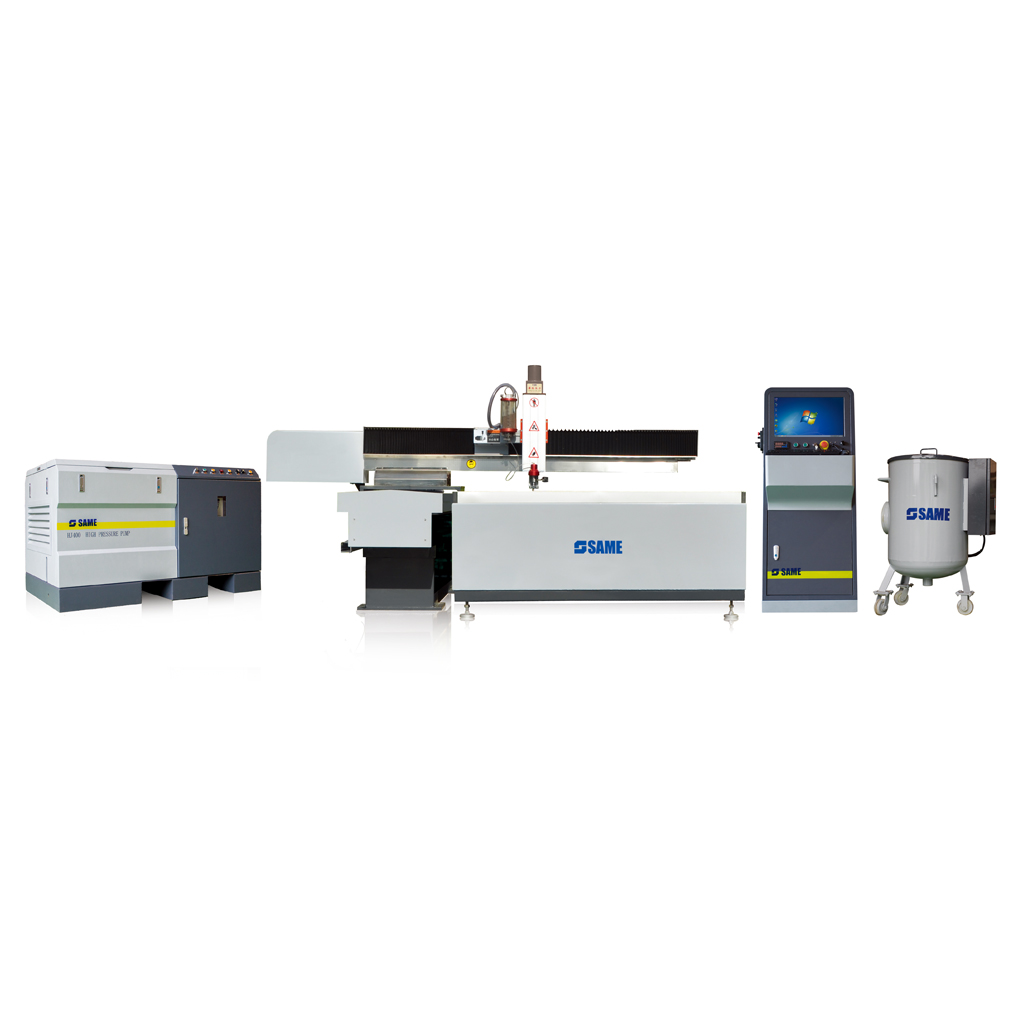

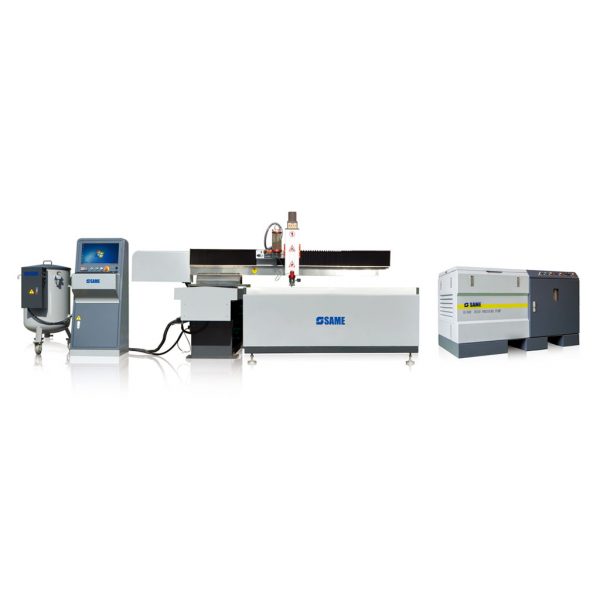

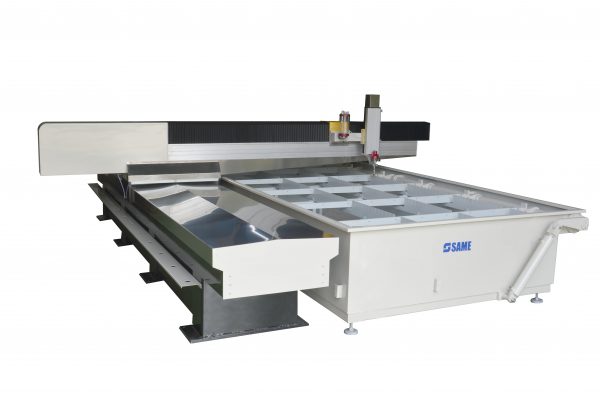

The cutting table consists of a transmission part with X axis Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Cantilever mechanical structure is fit to small size machines, a short running distance of X and Y axis, simple structure, suitable for processing a variety of complex small parts.
SAME® cantilever type waterjet cutting machine is available in many sizes (1600mm x 1600mm, 2500mm x 1600mm, 3000mm x 2000mm, 4000mm x 2000mm, etc. Customized service is available.)
● Travel of Z axis: 150mm
● Servo system: YASKAWA, JAPAN
● Cutting accuracy: ±0.1mm
● Control accuracy: ±0.01mm
● Re-positioning accuracy: ±0.025mm/m
● Max. moving speed: 6000mm/min
